How Do I Exclude Dimension Lumber Hangers from a Javelin® Material List? – Trus Joist Technical Support

Q: How do I exclude dimension lumber hangers from the material list?

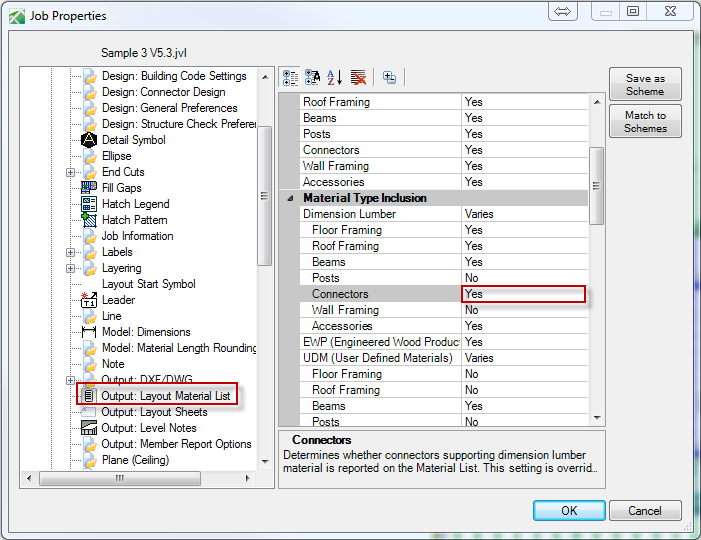

A: Go to Job Properties > Job Settings > Output: Layout Material List in the Material Type Inclusion setting, turn the Connectors setting under Dimension Lumber to No. (Set the Dimension Lumber property to Varies to make that property visible.) OR use the Exclude Materials tool in the Clean Up and Output ribbon to remove the hangers from the material list. Trigger the tool then select the hangers you want excluded. You must select the hanger; just excluding the supported member will not exclude the hanger.
