How far can you shift a TJI® Joist?

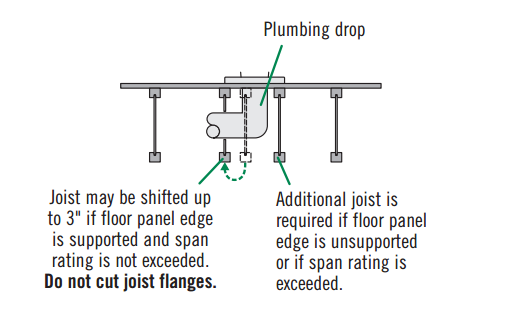

Weyerhaeuser permits a TJI® joist to be shifted a maximum of 3" to avoid plumbing or mechanical obstructions. The detail below is found in the Framer's Pocket Guide on pg 6.

If a shift of more than 3" is needed, we recommend considering the header off framing detail. Please contact tech support with any further questions or concerns.
